Regulador

Detalle técnico

Descripción

Marca: TANNA

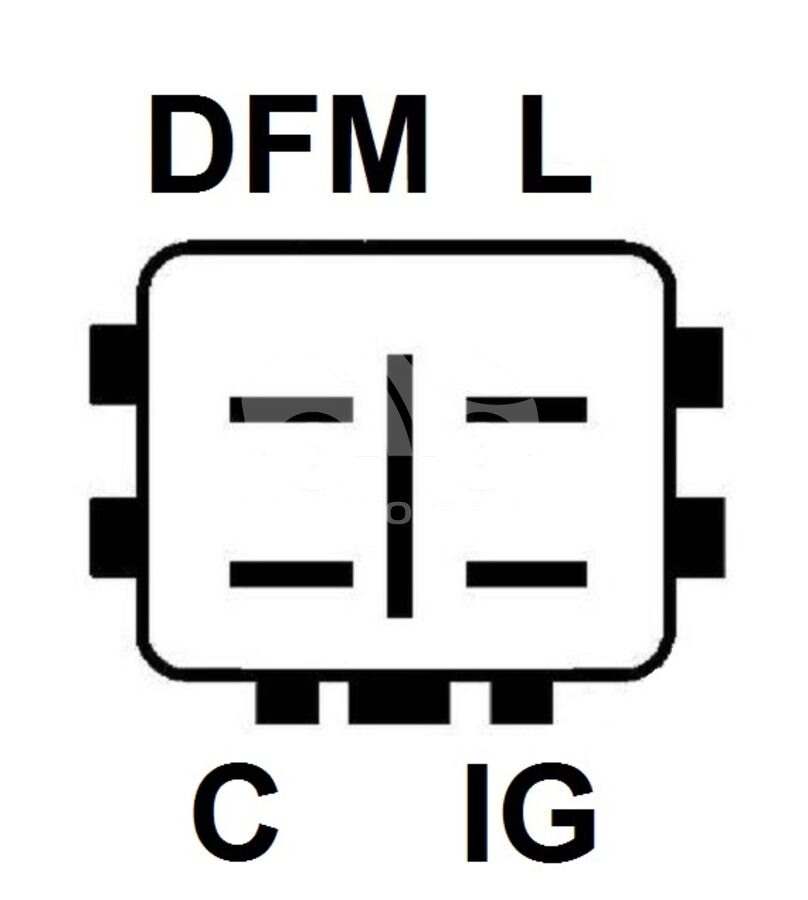

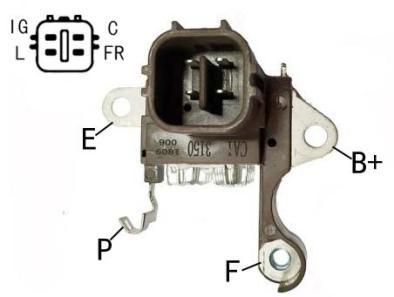

Tipo de terminal L-IG-C-DFM(FR)
Tipo de Circuito B
Tipo de alimentación Estator
Distancia entre los orificios de montaje (de centro a centro) 45 mm

Cargo:235831/330637
Transpo IN6307/IN6315/IN6004
Yunyi:S03-014/13300100
LESTER:11030/11099/13918/23941
Denso:1260000041/1260000042/1266000040/1266003070/
1266003150/GA10042/GA13070/GA13150/1042103090/1042103091/
1042103092/1042103730/1042103100/1042103500/1042103911/
1042104300/1042104301/2706033050/2706033051
Mobiletron：VRH200599
OE:GA1 3070/GA1 3150

ACURA MDX 3.5 01.2001- HONDA Odyssey 3.5 01.2002- HONDA Pilot 3.5 01.2003- HONDA Accord 2.0 i [R20A3] 07.2008- HONDA Accord 2.2 DTDi [N22A1] 01.2004-06.2008 HONDA Accord 2.2 i-CTDi [N22A1] 02.2004- HONDA Accord 2.2 i-DTEC [N22B1] 07.2008- HONDA Accord 2.4 i [K24Z3] 07.2008- HONDA Civic 2.2 CTDi [N22A2] 01.2006- HONDA CR-V 2.2 CTDi [N22A2] 03,2005-09,2006 HONDA CR-V 2,2 i CTDi [N22A2] 01,2007-HONDA FR-V 2,2 i CTDi [N22A1] 07,2005-MINI One 1,4 diésel (R50)[1ND] 06,2003-11,2006 MINI One 1,4 diésel [1ND] 06,2003-11,2006 FIAT Sedici 2,0 D Multijet [D20AA] 01,2009- FIAT Sedici 2,0 D Multijet 4x4 [D20AA] 01,2009- SUZUKI SX4 2,0 ​​DDiS [D20AA] 01,2009-12,2013 SUZUKI SX4 2.0 DDiS 4x4 [D20AA] 01.2009-12.2013 TOYOTA Avanza 1.3 [3SZ-VE] TOYOTA Avanza 1.3 [K3VE] TOYOTA Avanza 1.5 [K3VE]
1042101070 , 1042101170 , 1042101180 , 1042102450 , 1042103090 , 1042103091 , 1042103092 , 1042103100 , 1042103500 , 1042103730 , 1042103740 , 1042103911 , 1042104290 , 1042104300 , 1042104301 , 1042104480 , 1042104481 , 1042104690 , 1042104860 , 1042105640 , 1042109020 , 1042109090 , 1042109150 , 27060BZ130 , 31100RBDE01 , 3140059L00 , 3140061J20 , 3140067J10 , ALN0185AN , ALN0185BA , ALN0185LP , ALN0185MQ , ALN0185NW , ALN0185US , ALN0185WA , ALN0185ZD , ALN0191AN , ALN0191BS , ALN0191MQ , ALN0191WA , ALN0191ZD , ALN0202AN , ALN0202GB , ALN0202MQ , ALN0202UX , ALN0202WA , ALN0202ZD , ALN1980 , ALN1980ZD , ALN2224AN , ALN2273AN , ALN2273ZD , ALN3970 , ALN4170 , ALN4170AN , ALN4311AN , ALN4311ZD , ALN5640AN , ALN5640BS , ALN5640GB , ALN5640ZD , ALN7260AN , ALN9150GB , ALN9150UX , ALN9391UX , ALN9391ZD

HONDA Accord 3.0 2007-HONDA Accord 2.0 i [R20A3]2008-HONDA Accord 3.0 2004-2007ACURA MDX 3.7 2007-2008

Compatibilidad: ACURA (2003-2009); HONDA (2004-2008); PONTIAC (2009-2010); HONDA - EUROPE (2004-2010)
ESPECIFICACIONES : 12 voltios, circuito B, terminales IG-CL-FR, 14,35 Vset
ESPECIFICACIONES PARA : Alternadores Denso IR/IF
Fabricante : DENSO
NOTA 1 : Función de lámpara estándar: sin salida de luz.
CARACTERÍSTICA 1 : Transporte 100% nuevo
Número de pieza del fabricante original: Denso 126600-3070, 126600-3150, Número de referencia original 3070, 3150, GA13070, GA13150

Categoría: Reguladores
